- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Feili
- Model Number: FLK-0015
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Feili fire pump control panel diesel
Model Number: FLK-0015
Theory: Pump Control Panel
Structure: Control Panel for fire pump
Usage: fire pump control panel diesel
Power: Electric
Standard or Nonstandard: Standard
Fuel: Electric
Pressure: High Pressure
Application: Electric Control Panel For Water Pump
Name: Star delta control panel nfpa 20 fire pump control panel diesel
Protection Level: IP55
Type: Fire Pump Control Panel / Star delta control panel
Mains voltage fluctuation: ≤ ±10%
Absolute altitude: ≤1000m
Material: Stainless steel 304, cold rolled sheet
OEM/ODM: YES
Controlling the number of pumps: 1~4 pieces or more
Start-up model: Direct start, Soft start, star-delta start
Application Fields: 20 fire pump control panel diesel For Electric Water Pump,Agriculture
Packaging & Delivery
| Packaging Details: | Standard export packing for every fire pump control panel diesel or according to customers' requirement. |
|---|
| Delivery Detail: | Shipped in 15 days after payment |
|---|
Product Description

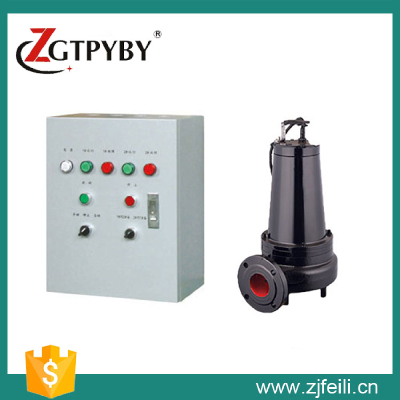

Star delta control panel nfpa 20 fire pump control panel diesel
>>> Product Overview
According to different control requirements, the fire pump control panel / cabinets can conduct poleless speed regulation on water pumps by parameters as control signals, such as pressure, liquid level, temperature, flow, pressure difference, temperature difference, etc.
>>> Applicable scope
It′s applicable for automatic control of domestic and industrial water supply and drainage, automatic control, spray and booster pump, control of cold and hot water circulating pump of air-conditioning, and control and starting of other AC motors.
>>> Some Types of Pump Control Panel
Control Panel For Liquid level control
Start-up Model: | Additional Function: |
Direct start
Soft start
Autotransformers start | Timer start and stop
BA interface
Remote interface
Double power |
Working Conditions: |
Mains voltage fluctuation: ≤ ±10%
Ambient temperature: -10~ 40ºC (no freezing)
Relative humidity: 20%~60% (no condensation)
Absolute altitude: ≤1000m
Shaking <5.9m/, gradient ≤5º
No electric dust and can corrode metal and damage the insulation of gas
No danger of explosion |
Control Panel For Pressure control
Start-up model: | Additional function: |
Direct start
Soft start
Autotransformers start
Star-delta start | Timer start and stop
BA interface
Remote interface
Double power |
Working conditions: |
Mains voltage fluctuation: ≤ ±10%
Ambient temperature: -10~ 40ºC (no freezing)
Relative humidity: 20%~60% (no condensation)
Absolute altitude: ≤1000m
Shaking <5.9m/, gradient ≤5º
No electric dust and can corrode metal and damage the insulation of gas
No danger of explosion |
Control Panel For HVAC (Heating, Ventilation and Air Conditioning)
Start-up model: | Additional function: |
Direct start
Soft start
Autotransformers start
Star-delta start | Timer start and stop
Ba interface
Remote interface
Double power |
Working conditions: |
Mains voltage fluctuation: ≤ ±10%
Ambient temperature: -10~ 40ºC (no freezing)
Relative humidity: 20%~60% (no condensation)
Absolute altitude: ≤1000m
Shaking <5.9m/, gradient ≤5º
No electric dust and can corrode metal and damage the insulation of gas
No danger of explosion |
Control Panel For Fire fighting
Start-up model: | Additional function: | Auxiliary pump control |
Direct start
Soft start
Autotransformers start
Star-delta start | Timer inspect
BA interface
Remote interface
Double power | Pressure control
Frequency conversion speed control |
Working conditions: |
Mains voltage fluctuation: ≤ ±10%
Ambient temperature: -10~ 40ºC (no freezing)
Relative humidity: 20%~90% (no condensation)
Absolute altitude: ≤1000m
Shaking <5.9m/, gradient ≤5º
No electric dust and can corrode metal and damage the insulation of gas
No danger of explosion
There are rain and shock devices, no steam |
Control Panel For Frequency Conversion Speed Control
Start-up model: | Additional function: | Main pump control |
Direct start
Soft start
Autotransformers start
Star-delta start | Timer start and stop
Ba interface
Remote interface
Double power | Pressure control
Flow control
Temperature control
Liquid level control |
Working conditions: |
Mains voltage fluctuation: ≤ ±10%
Ambient temperature: -10~ 40ºC (no freezing)
Relative humidity: 20%~60% (no condensation)
Absolute altitude: ≤1000m
Shaking <5.9m/, gradient ≤5º
No electric dust and can corrode metal and damage the insulation of gas
No danger of explosion |
